Magnetic Sheet Fanners

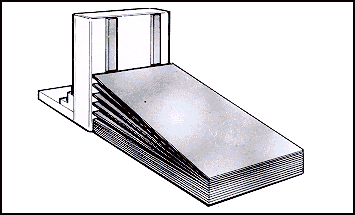

Magnetic Sheet Fanners ease the handling of sheet steel, making it safer and faster. Non-electric permanent magnets provide a constant, powerful magnetic force that separates the sheets, eliminating the need to pry them apart. Sheet fanners work on dry, stick, oily, polished, painted or printed sheets.
Our stainless steel cased fanners are available in several standard models to effectively handle sheets of different gauges, shapes and sizes. The completely self-contained units come with carrying handles to move from one job to another.
|
Model
|
Size
|
A
|
B
|
C
|
D
|
E
|
F
|
G
|
|---|---|---|---|---|---|---|---|---|
|
1175
|
7, 9
|
6-12
|
7, 9
|
4-1/4
|
3
|
4
|
3/8
|
1-7/8
|
|
1300
|
9, 12, 15
|
7-1/2
|
9, 12, 15
|
6-1/8
|
5
|
5
|
3/8
|
2
|
|
1400
|
9, 12, 15,1 6-1/2, 18, 21
|
9-1/2
|
9, 12, 15,1 6-1/2, 18, 21
|
7-3/8
|
6
|
7
|
3/8
|
2-1/2
|
To Determine Size:
27 Gauge (.0164″) sheet
Model 1175 – One separator/15″ width
Model 1300 – One separator/30″ width
22 Ga. (.0299)
18 Ga. (.0478)
14 Ga. (.0747)
Model 1300 – One separator/30″ width
11 Ga. (.1196) sheet
Model 1300 – One separator/24″ width
8 Ga. (.1644) sheet
Model 1400 – One separator/20″ width
7 Ga. (.1875) sheet
Model 1400 – One separator/15″ width
*Multiple units can be used when sheet dimensions exceed recommended separator sizes.
